Walk-behind Scrubber Dryers

Model Range 70 Litres

The walk-behind scrubber dryer of the Gmatic family with a chassis width of only 60 cm, up to almost 3:19 hours of battery runtime and a working width of 73 or 85 cm – practical benefit: the brush head overhangs to the left and right by 13 to 25 cm for deep scrubbing under larger overhangs. Scrubbing performance equals that of heavy single-disc machines. Gentle-on-the-machine control of all drives via the system controller: soft start, three speeds for scrubbing and suction, current limiter, battery guard. Drive axle of 400 W with differential for ramp travel with regenerative braking.

Walk-behind Scrubber Dryer - Model Range 70 Litres

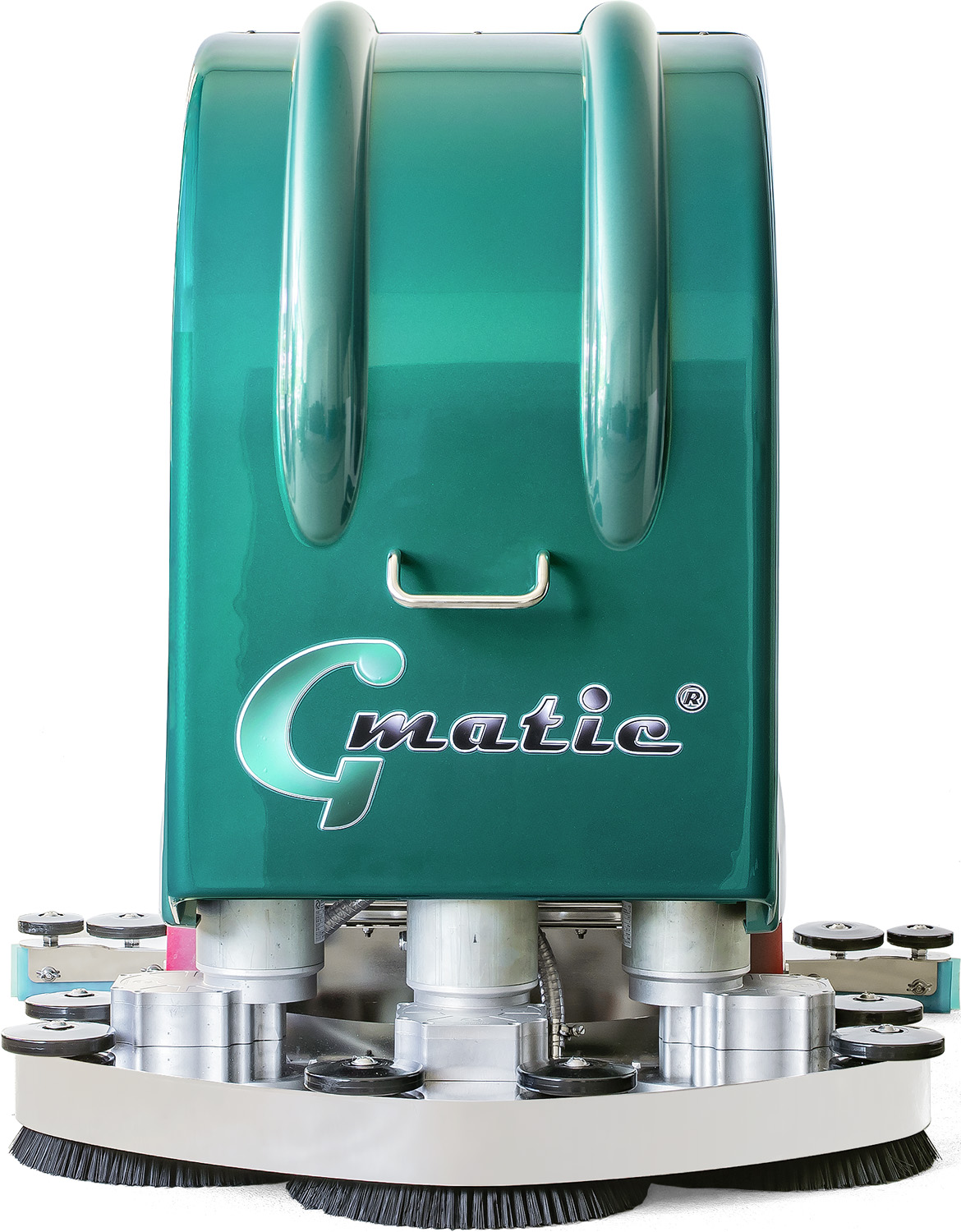

Gmatic 70 BTX 73

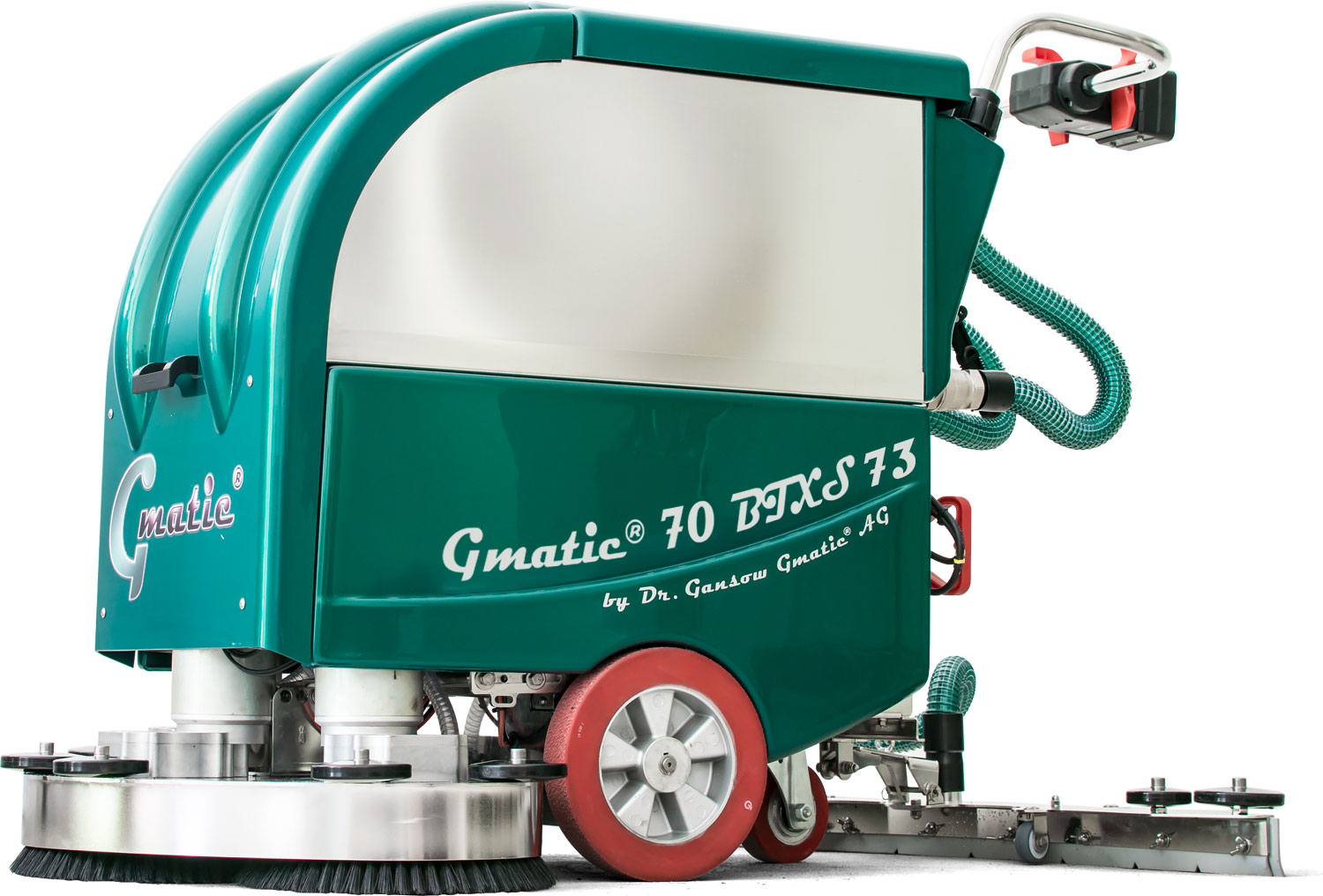

Gmatic 70 BTXS 73















Dimensions

Working width mm 730
Squeegee width mm 990
Dimensions (LxWxH) mm 1.470 x 600 x 1.060
Operating weight kg 320

Water

Fresh water Litres 70
Water consumption ml/m² 50
Water consumption L/min 2,1
Tank range m² 1.400

Motors

Speed1 km/h 0-6
Differential axle W 400
Brush speed rpm 200/300
Brush motor W 2x 300

Batteries

Battery voltage V 24
Battery capacity AhC5 157
Performance per hour2
(theoretical)		 m² 2.520
Current consumption3 A 41
Battery runtime3 (net)
(at 80% DoD)		 h:min 3:00
Area per battery charge3
(at 80% DoD, 4 km/h)		 m² 7.700

Charger

Charger A 36
Charging time h 4,5




1 The maximum speed is programmable, i.e. it can be limited.
   Working and transport speeds can be set separately.
2 Realistic practical value -40%.
3 in power mode on smooth ground. The value can vary widely.
