Ride-on Scrubber Dryers

Model Range 245 Litres

The currently largest ride-on scrubber dryer of the Gmatic family with a chassis width of 85 cm, up to almost 6:04 hours of battery runtime and 125 cm working width – practical benefit: the brush head overhangs to the left and right by 20 to 40 cm for scrubbing under deep overhangs. “Swinging” scrubbing heads for working right up to glass fronts and the like. Scrubbing performance equals that of heavy single-disc machines. Gentle-on-the-machine control of all drives via the system controller: soft start, three speeds for scrubbing and suction, current limiter, battery guard. Rear drive axle of 1,500 W with differential and magnetic brake for ramp travel with regenerative braking.

Ride-on Scrubber Dryer - Model Range 245 Litres

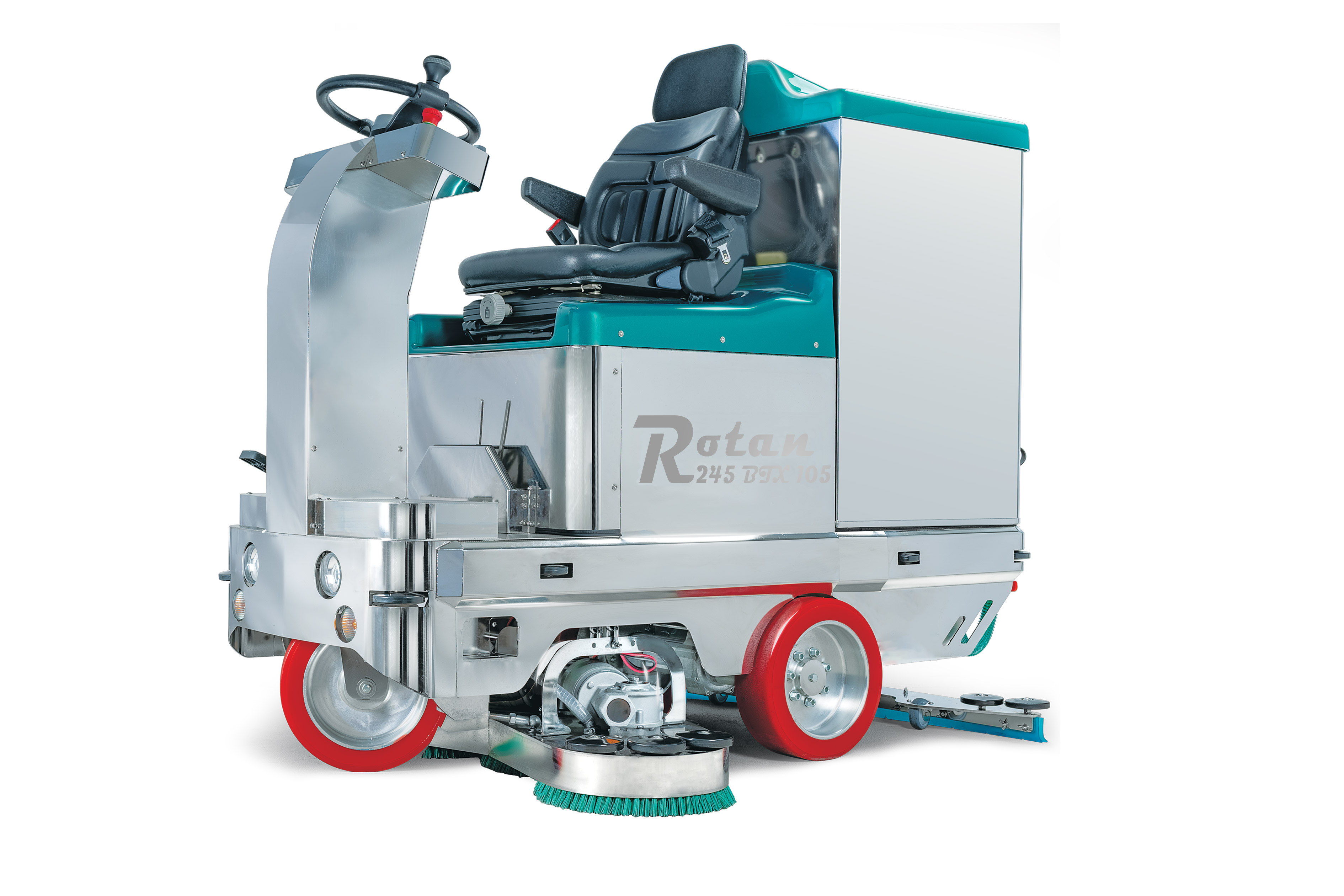

Rotan 245 BTX 105

Rotan 245 BTX 105















Dimensions

Working width mm 1.050
Squeegee width mm 1.370
Dimensions (LxWxH) mm 1.860 x 850 x 1.640
Operating weight kg 1.230

Water

Fresh water Litres 239
Water consumption ml/m² 50
Water consumption L/min 6,3
Tank range m² 4.780

Motors

Speed1 km/h 0-12
Differential axle W 1.500
Brush speed rpm 200/300
Brush motor W 3x 430

Batteries

Battery voltage V 36
Battery capacity AhC5 372
Performance per hour2
(theoretical)		 m² 7.600
Current consumption3 A 49
Battery runtime3 (net)
(at 80% DoD)		 h:min 6:00
Area per battery charge3
(at 80% DoD, 4 km/h)		 m² 46.200

Charger

Charger A 75
Charging time h 4,5




1 The maximum speed is programmable, i.e. it can be limited.
   Working and transport speeds can be set separately.
2 Realistic practical value -40%.
3 in power mode on smooth ground. The value can vary widely.
