Ride-on Scrubber Dryers

Model Range 155 Litres

Currently the smallest ride-on scrubber dryer of the Rotan family with a chassis width of only 76 cm, up to an incredible 5:36 hours of battery runtime and up to 105 cm working width – practical benefit: the brush head overhangs to the left and right by 9 to 29 cm for deep scrubbing under larger overhangs. “Swinging” scrubbing heads for working right up to glass fronts and the like. Scrubbing performance equals that of heavy single-disc machines. Gentle-on-the-machine control of all drives via the system controller: soft start, three speeds for scrubbing and suction, current limiter, battery guard. Rear drive axle of 800 W with differential and magnetic brake for long, steep ramp travel with regenerative braking.

Ride-on Scrubber Dryer - Model Range 155 Litres

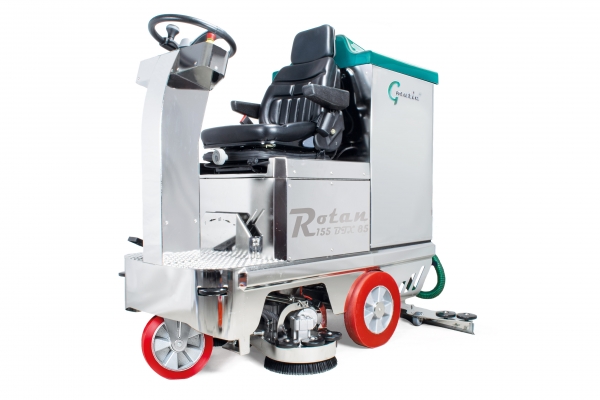

Rotan 155 BTX 85

Rotan 155 BTX 85















Dimensions

Working width mm 850
Squeegee width mm 1.030
Dimensions (LxWxH) mm 1.510 x 760 x 1.550
Operating weight kg 900

Water

Fresh water Litres 145
Water consumption ml/m² 50
Water consumption L/min 5,0
Tank range m² 2.900

Motors

Speed1 km/h 0-9
Differential axle W 800
Brush speed rpm 200/300
Brush motor W 3x 430

Batteries

Battery voltage V 24
Battery capacity AhC5 372
Performance per hour2
(theoretical)		 m² 6.000
Current consumption3 A 53
Battery runtime3 (net)
(at 80% DoD)		 h:min 5:40
Area per battery charge3
(at 80% DoD, 4 km/h)		 m² 33.700

Charger

Charger A 70
Charging time h 4,5




1 The maximum speed is programmable, i.e. it can be limited.
   Working and transport speeds can be set separately.
2 Realistic practical value -40%.
3 in power mode on smooth ground. The value can vary widely.
